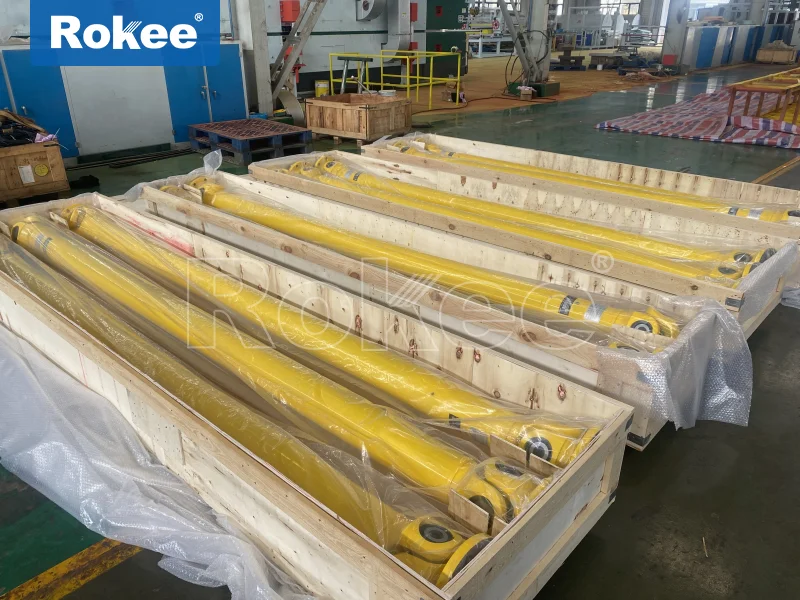

Scalable Universal Joint Couplings
The telescopic universal joint coupling is a key component in modern mechanical transmission systems, which cleverly integrates the angular compensation capability of the universal joint with the axial adjustment function of the telescopic mechanism. This type of coupling can not only effectively solve the problem of angular deviation between transmission shafts, but also compensate for axial displacement and adapt to dynamic changes during equipment operation. From heavy metallurgical machinery to precision automation equipment, telescopic universal joint couplings play an irreplaceable role in many industrial fields due to their unique structural advantages and transmission performance.
The expandable universal joint coupling is a universal transmission device that integrates axial expansion and contraction functions, representing a significant innovation in the field of coupling technology. Compared with ordinary universal couplings, this type of coupling not only maintains angle compensation capability, but also adds axial displacement adjustment function, making it a multifunctional solution to solve complex shaft transmission problems. Traditional couplings often have limitations when dealing with shaft system deviations - they can only compensate for angular deviations or adjust axial displacement, while telescopic universal joint couplings can simultaneously address these two challenges, greatly improving the adaptability and reliability of mechanical transmission systems.
In modern industrial systems, expandable universal joint couplings have developed diverse structural forms, each with its specific advantages and application scenarios. The SWP-F type large telescopic single cross axis universal joint is known for its ultra long telescopic capacity (up to 150mm), making it particularly suitable for heavy equipment that requires significant axial displacement compensation. The SWC-CH type long telescopic welded coupling adopts an integral fork head design, which provides considerable telescopic capacity while maintaining structural strength. The SWC-BH standard telescopic welded product balances compactness and performance reliability, becoming a universal choice for many industrial applications. The WSS type telescopic universal joint is known for its compact design, making it particularly suitable for precision transmission applications with limited space. These different types of products together form a complete technical system for expandable universal joint couplings, which can meet various transmission needs from micro devices to giant machinery.
The brilliance of the telescopic universal joint coupling lies in its integration of two different compensation mechanisms into a compact unit. The core structure of this type of coupling consists of three main parts: universal joint mechanism, telescopic adjustment mechanism, and connecting support components. The universal joint mechanism usually adopts the classic cross axis design, which includes two mutually perpendicular shafts and four bearing points, which is the key to achieving angle compensation. The telescopic adjustment mechanism often adopts precision spline or sleeve type sliding structure, allowing for free axial movement. The connecting support components include various flanges, forks, and shells, which not only provide structural support but also ensure that each component maintains precise relative position. These components have been carefully designed and precision machined to form a mechanical system that is both robust and flexible.
