WZL Drum Coupling

WZL Drum Coupling is a spherical hinged coupling. It has a connecting flange with an inner spherical surface, a spherical semi-coupling sleeve with an outer spherical surface, a special transmission key, an inner and outer limit cover, etc. The internal control generally adopts the splined sleeve design, which transmits torque through a specially designed key bar and can withstand large torque and radial load. The maximum angular displacement compensation can reach 3°, with a life indicator and safe and reliable structure.

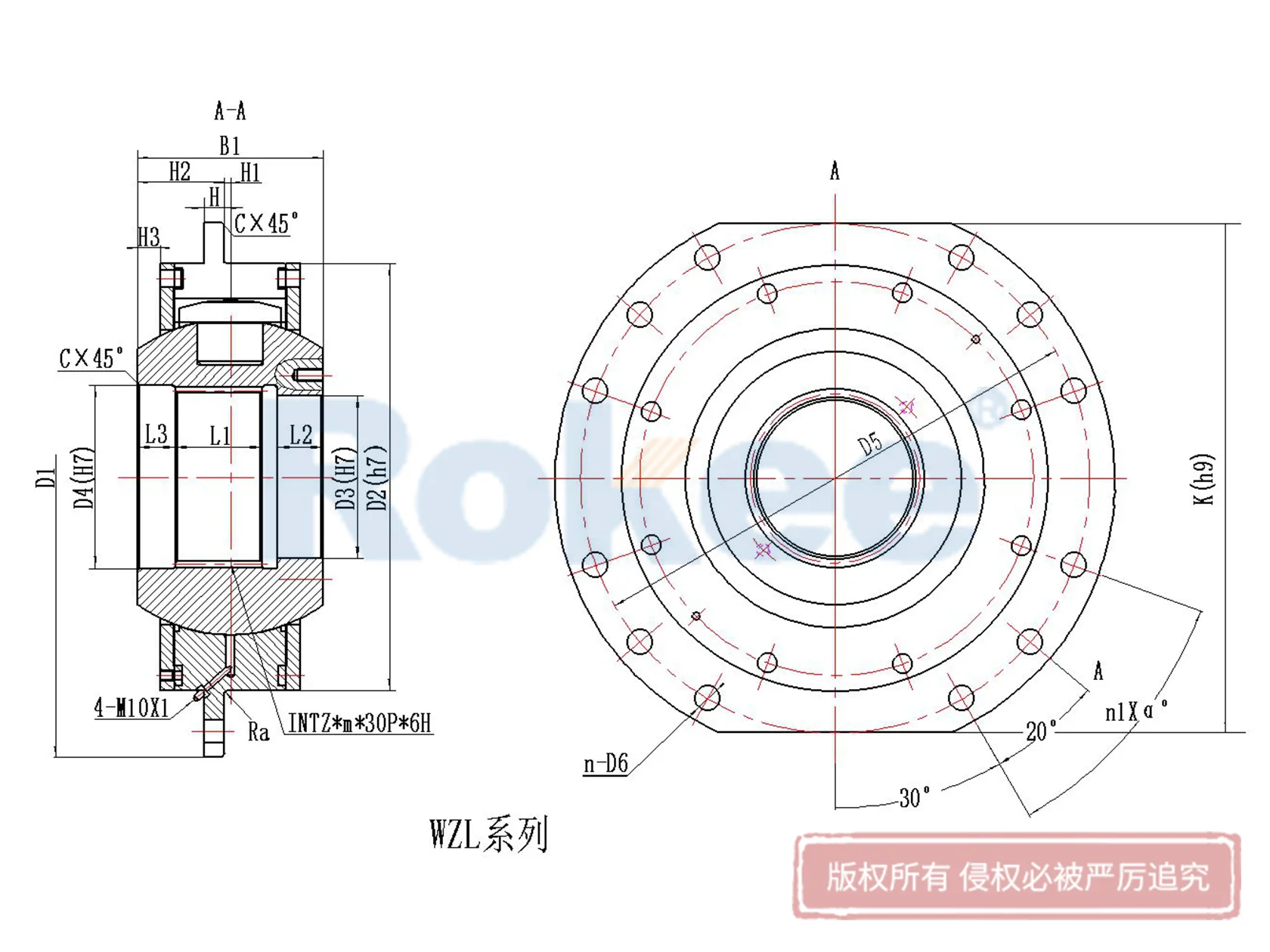

Model			WZL01	WZL02	WZL03	WZL04	WZL05	WZL06	WZL07	WZL08	WZL09	WZL10	WZL11	WZL12	WZL13	WZL14	WZL15	WZL16	WZL17	WZL18
Nominal Torque kN.m			6.3	9	12.5	16	20	25	40	63	80	125	200	315	400	500	630	800	1120	1490
Transmitted Torque KN.M	Work Level	M3	6.3	9	12.5	16	20	25	40	63	80	125	200	315	400	500	630	800	1120	1490
		M4	5.6	8	11.2	14	18	22.4	35.5	56	71	112	180	280	355	450	560	710	1000	1380
		M5	5	7.1	10	12.5	16	20	31.5	50	63	100	160	250	315	400	500	630	900	1250
		M6	4.5	6.3	9	11.2	140	18	28	45	56	90	140	224	280	355	450	560	800	1120
		M7	4	5.6	8	10	12.05	16	25	40	90	80	125	200	250	315	400	500	710	1000
		M8	3.55	5	7.1	9	11.2	14	22.4	35.5	45	71	112	180	224	280	355	450	630	900
GB3478.1			15Z×3m	18Z×3m	22Z×3m	27Z×3m	18Z×5m	22Z×5m	26Z×5m	30Z×5m	34Z×5m	38Z×5m	26Z×8m	30Z×8m	34Z×8m	38Z×8m	44Z×8m	50Z×8m	44Z×10m	56Z×10m
( Spline INT Z×m×30P×6H)			15Z×3m	18Z×3m	22Z×3m	27Z×3m	18Z×5m	22Z×5m	26Z×5m	30Z×5m	34Z×5m	38Z×5m	26Z×8m	30Z×8m	34Z×8m	38Z×8m	44Z×8m	50Z×8m	44Z×10m	56Z×10m
K(h9)			250	280	300	320	340	360	400	450	500	530	580	600	640	700	760	860	1020	1100
B1			80	84	92	97	127	137	157	167	182	192	207	222	237	262	287	352	410	430
D1			300	320	340	360	380	400	450	500	550	580	650	680	710	780	850	950	1120	1200
D2(h7)			190	200	220	240	260 ,	280	340	380	420	450	530	560	600	670	730	840	975	1055
D3(H7)			40	50	60	70	80	100	120	140	160	180	190	220	250	280	320	360	400	540
D4(H7)			50	60	70	85	100	120	140	160	180	200	222	254	286	318	366	420	460	580
D5			260	280	300	320	34 0	360	400	450	500	530	600	630	660	730	800	900	1055	1135
H			12	15	15	15	15	15	15	20	20	20	25	25	35	35	35	45	50	60
H1			3	3	3	4	4	5	5	6	6	6	7	7	8	8	9	10	15	25
H2			37	39	43	44.5	59.5	63.5	73.5	77.5	85	90	96.5	104	110.5	123	134.5	166	190	190
H3			4	5	5	5.5	10.5	10.5	12.5	13.5	16	14	15.5	16	17.5	16	17.5	37	37	37
L1			30	30	35	40	50	55	70	75	85	95	105	120	135	150	170	220	260	270
L2			18	22	25	25	25	30	35	40	45	45	45	45	45	55	60	60	60	60
L3			22	22	22	22	37	37	37	37	37	37	37	37	37	37	37	52	65	70
n-D6			8—14	8--18	8--18	8--18	8--18	8--18	12--22	12--22	12--22	12--22	12--22	24--22	24--26	24--26	24--26	24--26	24--29	24--29
Bolt			M12	M16	M16	M16	M16	M16	M20	M20	M20	M20	M20	M20	M24	M24	M24	M24	M27	M27
n1× α°			1×40	1×40	1×40	1×40	1×40	1×40	2 × 2 0	2 × 2 0	2 × 2 0	2 × 2 0	2 × 2 0	5 × 1 0	5 × 1 0	5 × 1 0	5 × 1 0	5 × 1 0	5 × 1 0	5 × 1 0
Ra			1.6	1.6	2	2	2	2	2.5	2.5	2.5	2.5	2.5	2.5	3	3	3	3	4	4
C			1.6	2	2	2.5	2.5	2.5	3	3		4	4	5	5	5	6	6	6	6
Rotational Inertia kg.m²			0.13	0.19	0.27	0.37	0.56	0.76	1.65	2.86	4.49	6.18	12.5	16.4	23.13	39.18	59.25	114.5	260.4	337.8
Weight kg			18.9	22.6	28	32.8	47	57	90	122	157	190	290	335	393	551	693	1250	1950	2250
