RODM Torsion Protection Curved-tooth Gear Coupling
The RODM Drum Gear Coupling is a torque setting form of the ROD series coupling. By adjusting relevant components, the maximum transmission torque can be easily set within a certain range. Suitable for shafting transmission situations that require safe torque operation to protect important machine components from excessive damage.

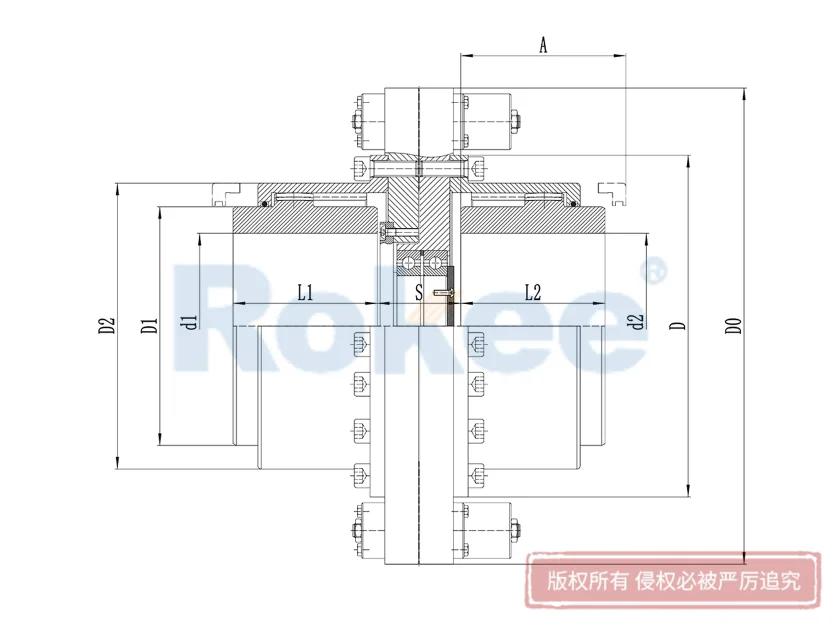

| Model | Rated Torque | Maximum Torque | Maximum Speed | Basic Size | Weight | Rotational Inertia | Grease Usage | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm | Nm | 1/min | D0 | D | D1 | D2 | d1-d2 (2) | L1-L2 | S | A | Kg | J(Kgm²) | Kg | |
| RODM01 | 1900 | 3800 | 8800 | 200 | 110 | 82 | 68 | 14-50 | 43 | 40 | 56 | 15 | 0.048 | 0.03 |
| RODM02 | 3000 | 5940 | 7000 | 240 | 140 | 104 | 85 | 17-62 | 50 | 52 | 62 | 28 | 0.146 | 0.06 |
| RODM03 | 6200 | 12200 | 6000 | 280 | 170 | 127 | 106 | 20-80 | 62 | 65 | 75 | 39 | 0.352 | 0.09 |
| RODM04 | 9300 | 18400 | 4800 | 320 | 210 | 155 | 132 | 26-98 | 76 | 84 | 90 | 65 | 0.66 | 0.12 |
| RODM05 | 15400 | 31000 | 4300 | 365 | 235 | 182 | 150 | 30-112 | 90 | 100 | 105 | 97 | 1.14 | 0.3 |
| RODM06 | 25300 | 49600 | 3700 | 400 | 270 | 210 | 175 | 35-133 | 105 | 110 | 120 | 142 | 2.199 | 0.4 |
| RODM07 | 38600 | 76400 | 3300 | 470 | 310 | 248 | 206 | 70-158 | 120 | 125 | 135 | 189 | 3.02 | 0.6 |
| RODM08 | 48800 | 96500 | 2900 | 500 | 338 | 275 | 235 | 85-174 | 135 | 140 | 158 | 242 | 4.05 | 0.8 |
| RODM09 | 75300 | 147800 | 2700 | 550 | 378 | 306 | 252 | 95-192 | 150 | 160 | 180 | 363 | 9.35 | 1.4 |
| RODM10 | 93000 | 181400 | 2400 | 580 | 400 | 330 | 274 | 105-210 | 175 | 190 | 200 | 445 | 13.56 | 2.5 |
| RODM11 | 166100 | 327200 | 2300 | 635 | 445 | 365 | 305 | 120-232 | 190 | 200 | 214 | 535 | 23.34 | 3.0 |
| RODM12 | 226000 | 447000 | 2000 | 708 | 508 | 425 | 355 | 130-276 | 220 | 230 | 245 | 693 | 114.39 | 4.5 |
