SWC-WD Short Non-telescopic Universal Joint Coupling

SWC-WD Universal Coupling adopts integrated fork head layout, with the rotary diameter of 1600mm and torque transmission distance of more than 30m. SWC-WD Cardan Shaft is widely used in steel rolling machinery, crane transport machinery and other heavy equipment fields.

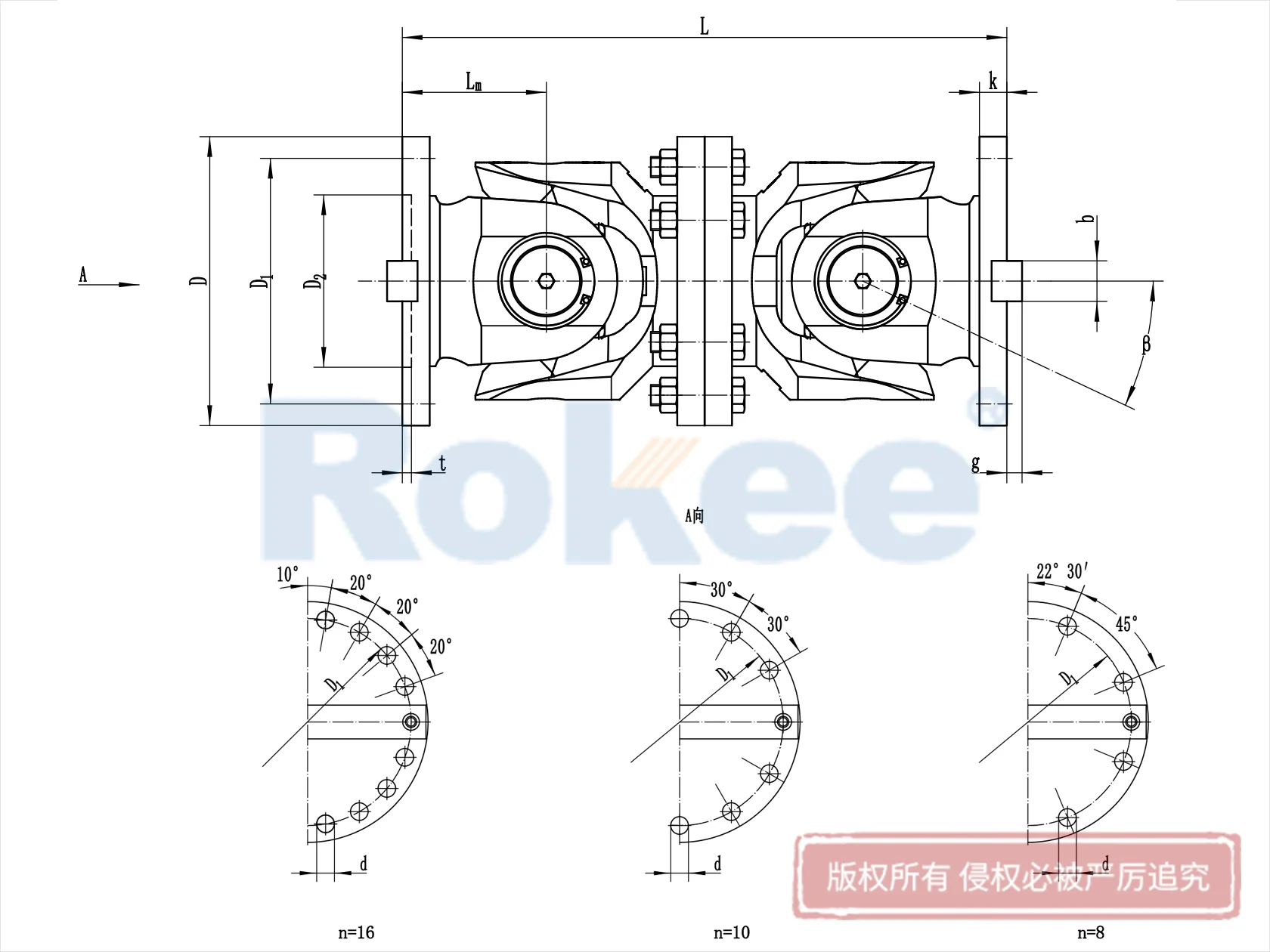

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Size / mm									Rotational Inertia kg ·m²	Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	L	D₁ (Js11)	D₂ (H7)	L_m	Nxφd	K	t	B (H9)	g	Rotational Inertia kg ·m²	Quality kg
SWC180WD	180	22.4	11.2	0.245	≤15	440	155	105	110	8×φ17	17	5	24	7	0.145	52
SWC200WD	200	36	18	1.115	≤15	460	170	120	115	8×φ17	17	5	28	8	0.261	76
SWC225WD	225	56	28	7.812	≤15	480	196	135	120	8×φ17	20	5	32	9	0.355	82
SWC250WD	250	80	40	2.82×10¹	≤15	560	218	150	140	8×φ19	25	6	40	12.5	0.831	127
SWC285WD	285	120	58	8.28×10¹	≤15	640	245	170	160	8×φ21	27	7	40	15	1.715	189
SWC315WD	315	160	80	2.79×10²	≤15	720	280	185	180	10×φ23	32	8	40	15	2.820	270
SWC350WD	350	225	110	7.44×10²	≤15	776	310	210	194	10×φ23	35	8	50	16	4.791	370
SWC390WD	390	320	160	1.86×10³	≤15	860	345	235	215	10×φ25	40	8	70	18	8.229	524
SWC440WD	440	500	250	8.25×10³	≤15	1040	390	255	260	16×φ28	42	10	80	20	15.32	798
SWC490WD	490	700	350	2.154×10⁴	≤15	1080	435	275	270	16×φ31	47	12	90	22.5	25.74	1055
SWC550WD	550	1000	500	6.335×10⁴	≤15	1220	492	320	305	16×φ31	50	12	100	22.5	46.78	1524

Model	Rotary Diameter D mm	Nominal Torque T_n KN ·m	Fatigue Torque T_f KN ·m	Bearing Life Coefficient K_L	Axis Angle β (°)	Size / mm
						L			D₁ (js11)	D₂ (H7)	D₃	L_m			nxd	k
						β=5°	β=10°	β=15°	D₁ (js11)	D₂ (H7)	D₃	β=5°	β=10°	β=15°	nxd	k
SWC620WD	620	1600	960	0.21X10⁶	5°	1300	1380	1420	575	500	480	325	345	355	20×26	70
		1400	840	0.16X10⁶	10°
		1220	730	0.13X10⁶	15°
SWC680WD	680	2180	1310	0.51X10⁶	5°	1400	1500	1540	635	550	530	350	375	385	24×26	70
		1900	1140	0.41X10⁶	10°
		1640	980	0.32X10⁶	15°
SWC740WD	740	2800	1680	1.18X10⁶	5°	1540	1660	1700	685	600	590	385	415	425	24×33	80
		2450	1470	0.98X10⁶	10°
		2100	1260	0.75X10⁶	15°
SWC780WD	780	3300	1980	1.73X10⁶	5°	1620	1760	1820	725	640	630	405	440	455	24×33	90
		2860	1720	1.48X10⁶	10°
		2500	1500	1.06X10⁶	15°
SWC840WT	840	4100	2460	3.63X10⁶	5°	1840	1920	1980	775	680	660	460	480	495	24×39	100
		3580	2150	3.11X10⁶	10°
		3100	1860	2.23X10⁶	15°
SWC920WD	920	5390	3230	9.02X10⁶	5°	2000	2100	2160	855	730	750	500	525	540	24×39	110
		4700	2820	8.12X10⁶	10°
		4050	2430	5.62X10⁶	15°
SWC1000WD	1000	6900	4140	18.2X10⁶	5°	2220	2300	2380	920	800	790	555	575	595	20×45	125
		6000	3600	15.3X10⁶	10°
		5200	3120	12.2X10⁶	15°
SWC1100WD	1100	9200	5500	46.0X10⁶	5°	2440	2520	2620	1020	880	860	610	630	655	20×45	135
		8000	4800	36.1X10⁶	10°
		6900	4140	30.3X10⁶	15°
SWC1200WD	1200	12000	7200	110X10⁶	5°	2680	2740	2860	1110	960	940	670	685	715	20×52	150
		10400	6240	94X10⁶	10°
		9000	5400	74X10⁶	15°
SWC1280WD	1280	14600	8760	212X10⁶	5°	2900	2980	3060	1190	1020	1000	725	745	765	20×52	160
		12700	7600	165X10⁶	10°
		11000	6600	138X10⁶	15°
SWC1320WD	1320	16000	9600	286X10⁶	5°	3000	3080	3160	1230	1040	1020	750	770	790	24×52	170
		13900	8340	224X10⁶	10°
		12000	7200	187x10⁶	15°
