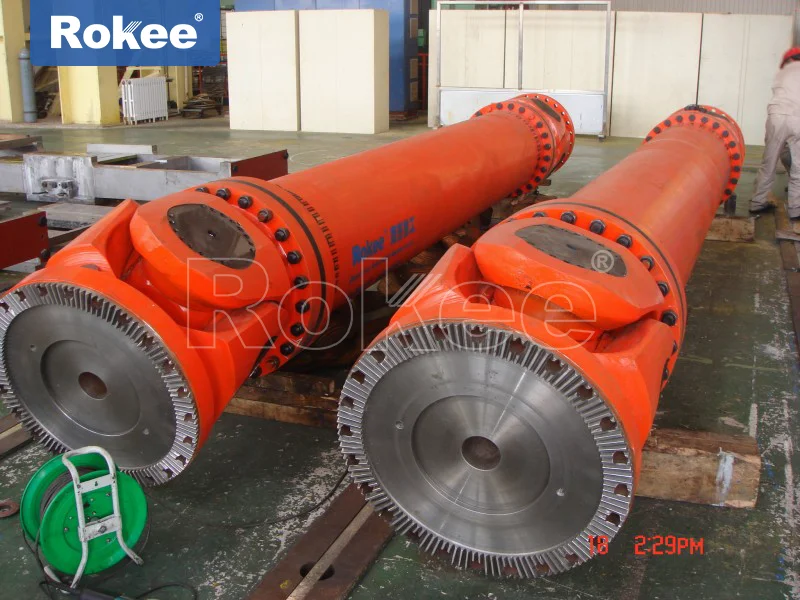

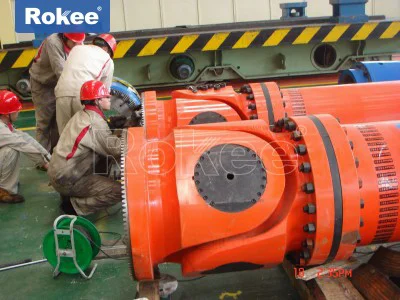

Welded Universal Shaft Coupling

As a key component in mechanical transmission systems, welded universal shaft couplings play an irreplaceable role in modern industrial equipment. This type of coupling solves the performance limitations of traditional couplings under heavy load and large angle working conditions through innovative welding structures and precision design, and is widely used in heavy industrial fields such as metallurgy, mining, and engineering machinery.

Welded universal shaft coupling is a special structural form of cross axis universal joint. It firmly connects the coupling components through welding technology, achieving structural strength and reliability that traditional couplings do not possess. This type of coupling is specifically used to connect two shafts (active shaft and passive shaft) in different mechanisms, allowing them to rotate together to transmit torque. It is particularly suitable for work scenarios where the two shafts are not on the same axis or have a large axis angle. Compared with ordinary couplings, the characteristics of welded universal joint couplings are greater angular compensation ability, compact structure, and high transmission efficiency.

The core function of the welded universal coupling is to solve the problem of "; Not right; problem In actual industrial production, due to factors such as manufacturing errors, installation deviations, bearing deformations, and temperature changes, completely accurate alignment of the shaft system is almost non-existent. Welded universal joint couplings can compensate for these inevitable deviations, ensuring the continuity and stability of power transmission. According to different structural designs, this type of coupling can handle axis angles of 5 ° -45 ° between two shafts, and some special models even allow for larger deflection angles.

From the perspective of material selection, welded cardan shaft couplings are mainly made of high-quality alloy steel, commonly including 45 steel, 45 forged steel, 40 chromium and other materials. These materials have undergone quenching and high-frequency quenching processes, possessing sufficient strength, toughness, and wear resistance to withstand complex stress states in heavy-duty transmission. The application of welding technology further enhances the connection strength of key parts, avoids the possible loosening problems of bolt connections, and makes the overall performance of the coupling more reliable.

In industrial applications, welded universal couplings have become the core transmission components of heavy equipment such as metallurgical machinery (such as steel mills), lifting equipment, engineering transport vehicles, mining machinery, oil drilling and production equipment, and ship power systems. In these harsh working environments, couplings not only need to transmit enormous torque, but also adapt to complex working conditions such as impact loads, temperature changes, and multidimensional displacements. Welded structures precisely meet these high-performance requirements. With the development of modern industrial equipment towards high power, high precision, and long service life, the technology and application of welded universal joint couplings are constantly advancing and innovating.
